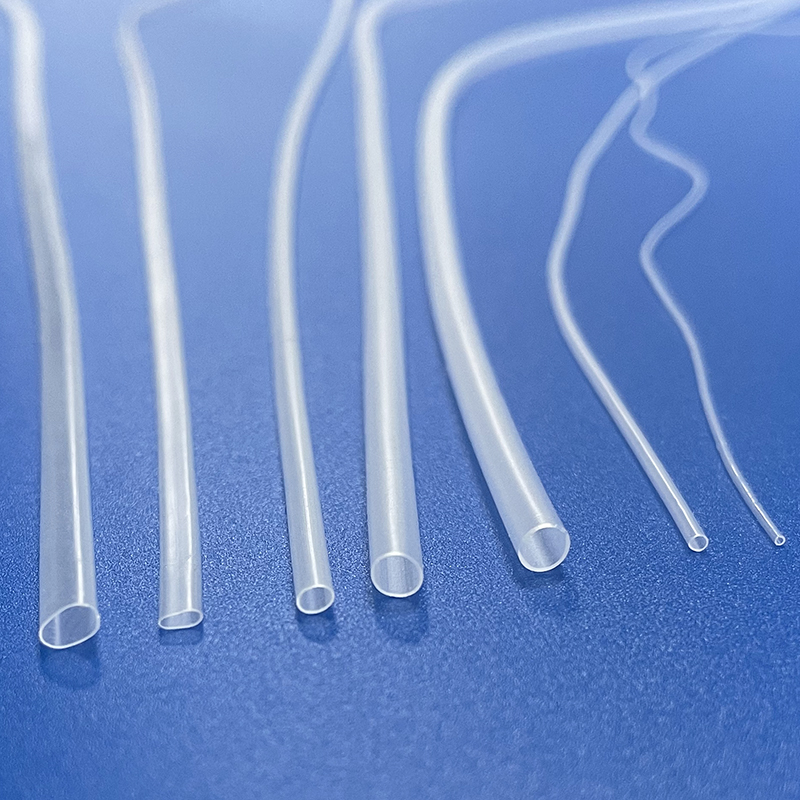

Thin Wall Silicone Rubber Tubing
Our extrusion process is unrivaled. We can vary inside diameter,
outside diameter or wall thickness to exact specifications, as well
as layer cross-sections from many types of materials to create
products with unique features.
In addition, we can manufacture very small extrusions, under 0.02
inch / 5 mm in diameter, and very thin wall tubing from thickness
0.1mm+.
Our processes can create a myriad of designs including thin walled,
thick walled, ribbed, perforated or split hosing and tubing. In
addition, we can engineer any formed extrusion profile, including
bends, coils or pigtails in single or multiple planes.
The vast majority of Tenchy’s extrusions are custom fabricated to
meet each customer’s unique requirements. The process typically
begins in the tool room with the precision manufacture of a die and
mandrel. Post-processing extrusion capabilities include services
such as post curing, cutting, spooling, printing and drilling.
| Physical Properties | |
| Hardness: | 50±5A |
| Density: | 1.18±0.05g/cm³ |
| Tensile strength : | >8.0 MPa |
| Elongation at break: | >380% |
| Working temperature: | -60°C to 200°C |
| Compression set: | 8% (150℃/22h) |
| Tear resistance (tear strength), Die B: | >20KN/m |
Material Description
● All food grade silicone products belong to environmental
protection silicone. It is non-toxic, odorless, with high
transparency
● Good resistance to weak acidic and alkaline solutions
Main Features
● High transparency, odorless, tasteless and non-toxic, free of BPA
● Excellent hot air resistance up to +200℃
● Excellent resistance to cold up to -60℃
● Excellent resistance to aging and weathering (UV, ozone)
● Meet FDA, RoHS requirements
● Placed at normal temperature, it does not turn yellow, spray
frost, spit white, or fade
Silicone Tube Hardness
● Shore 40A to 60A
Custom Size
● The wall thickness of the product can be 0.25mm to 20mm
● Minimum size 0.5*1.2mm
● Cut-to-Length service
● Minimum order quantity: 1000 meters
● Fast sample delivery, 2-3 days finish new samples
