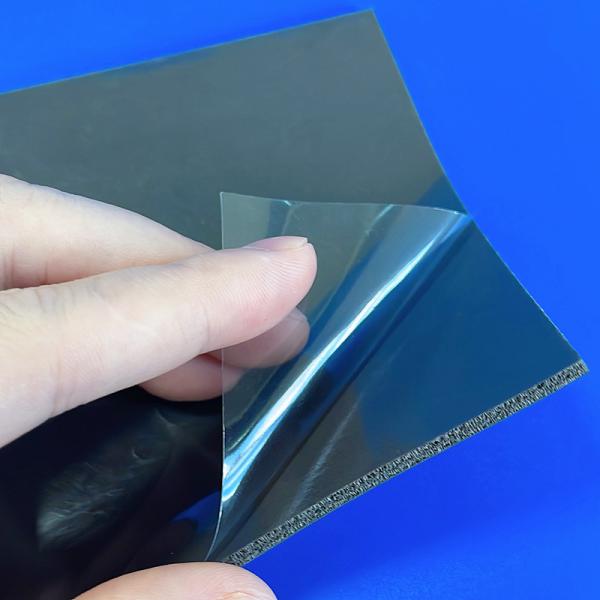

Closed Cell Silicone Sponge Sheet Multi Color High Temperature
Resistant
Liquid Foaming Silicone Foam Rubber Sheet Sheeting Customized Size
The TCS silicone foam sheet possesses superior compression set
resistance compared to regular carbon-based foaming materials. In
addition, it boasts remarkable tolerance for high and low
temperatures (-60°C to 200°C), exceptional flame retardancy with a
V-0 rating, and extremely low levels of smoke concentration.
Furthermore, this material showcases exceptional durability against
aging and weathering, rendering it ideal for applications that
require shock absorption, cushioning, sound insulation, protection,
insulation, and fire protection. Its color and density can be
tailored to meet specific requirements.
| Testing Item | Unit | Test Standard | TE800-SS | TE800-S | TE800-HS | TE800-H | TE800-F | TE800-R | TE800-FC |
| Color | / | / | Black | Black/Grey | Black | Black/Grey | Grey | Grey | White/Grey |
| Density | g.cm-3 | ASTM D 1056 | 0.18 ± 0.03 | 0.2±0.03 | 0.25±0.03 | 0.35±0.03 | 0.42±0.03 | 0.50±0.05 | 0.42±0.03 |
| Compression Stress,25% | KPa | ASTM D 1056 | 10± 3 | 20± 3 | 30± 5 | 65 ± 10 | 110± 15 | 145 ± 20 | 110± 15 |
| Compression Set | % | ASTM D 1056 | ≤3.0 | ≤3.0 | ≤3.0 | ≤5.0 | s5.0 | ≤5.0 | ≤5.0 |
| Tensile Strength | MPa | GB/T 528-2009 | ≥ 0.3 | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.4 | ≥0.4 | ≥ 4MPa |
| Elongation | % | GB/T 528-2009 | ≥ 90 | ≥ 90 | ≥ 90 | ≥ 90 | ≥100 | ≥100 | ≥ 100 |
| Water Absorption | % | ASTM D 570 | 55.0 | ≤5.0 | ≤ 5.0 | ≤ 5.0 | ≤ 5.0 | ≤5.0 | ≤ 5.0 |
| Environmental Testing | / | ROHS/REACH/TSCA | Pass | Pass | Pass | Pass | Pass | Pass | Pass |
| Burning Flame Spread Ratings | / | ASTM E162 | Pass | Pass | Pass | Pass | Pass | Pass | Pass |
| Burning Smoke Concentration | / | ASTM E 662-2015 | Pass | Pass | Pass | Pass | Pass | Pass | Pass |
| Burning Toxic Gas Emissions | / | SMP 800-C-2009 | Pass | Pass | Pass | Pass | Pass | Pass | Pass |
| Low Temperature Bending | / | ASTM D 1056 | -55℃ Pass | -55℃ Pass | -55℃ Pass | -55℃ Pass | -55℃ Pass | -55℃ Pass | -55℃ Pass |
| Dielectric Strength | KV/mm | GB/T 1695-2005 | ≥ 2.0 | ≥2.0 | ≥ 2.0 | ≥3.0 | ≥ 3.5 | ≥4 | ≥6 |
| Volume Resistivity | Q ·cm | GB/T 1695-2005 | ≥ 1.0*10° | ≥ 1.0*10" | ≥ 1.0*10" | ≥ 1.0*10° | ≥ 1.0*10° | ≥ 1.0*10" | ≥ 1.0*10° |
| Flame Retardant Rating | / | UL94-2013 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 |
Advantages:
Outstanding flame retardancy: Complies with the most stringent UL,
railway, and aerospace standards. Minimal flame, smoke, and
toxicity while burning. Superb performance under extreme
temperatures, both high and low. Resistance to compressive strain,
ensuring stability at high and ambient temperatures. Highly
resistant to UV and ozone, with small compression set and excellent
sealing. High-quality service: 24/7 support from professional
technical service engineers.
Applications:
Suitable for a wide range of applications, including new energy
vehicles, power batteries, charging stations, aerospace technology,
high-speed railways, telecommunications, electrical cabinets,
communication equipment, lighting, drones, and military and
civilian ships.
Packaging
1. Standard carton size: 35*40*50cm.
2. Customed package is available, including customed paper card,
plastic bag, label, printed carton etc.
Shipping
1. Pre-order negotiation, including items, quantity, specific
package requirement if you have.
2. PI confirmation, including specifications, prices, payment
account, shipping cost & agent etc.
3. Payment confirmation.
4. Shipping arrangement, packages will be under strict inspection.
5. Goods loading and delivering.
Advantages of silicone material
1. Soft,flexible,pliable,tough,light.
2. No smell,no posion,eco-friendly.
3. Antiwear,water-proof,oil-proof.
4. High temp-tolerant,col-resistanr,UV-resistant,anti-acid.
FAQ
Q1. Do you have any certifications?
A. Yes. we have FDA, LFGB, Reach, RoHs.
Q2. Do you have a minimum order?
A. We can accept small quantity order.
Q3. Can you custom according to our design?
A. Yes, drawing provided, we can custom.
Q4. Who are your customers?
A. Factory, wholesaler
Q5. What's your lead time?
A. It usually takes 3 to 15 days.
Q6. How will you ship my order?
A. By sea(FCL, LCL), by air, by international express.
